The best features
of the Anfibio Revo XL+

Better bigger

The big Revo delivers everything the Revo CL offers, but with a little bit more of everything. As you would expect from an XL version. It's a bit longer, wider, more powerful and, thanks to TubeBags, can also carry a full load.

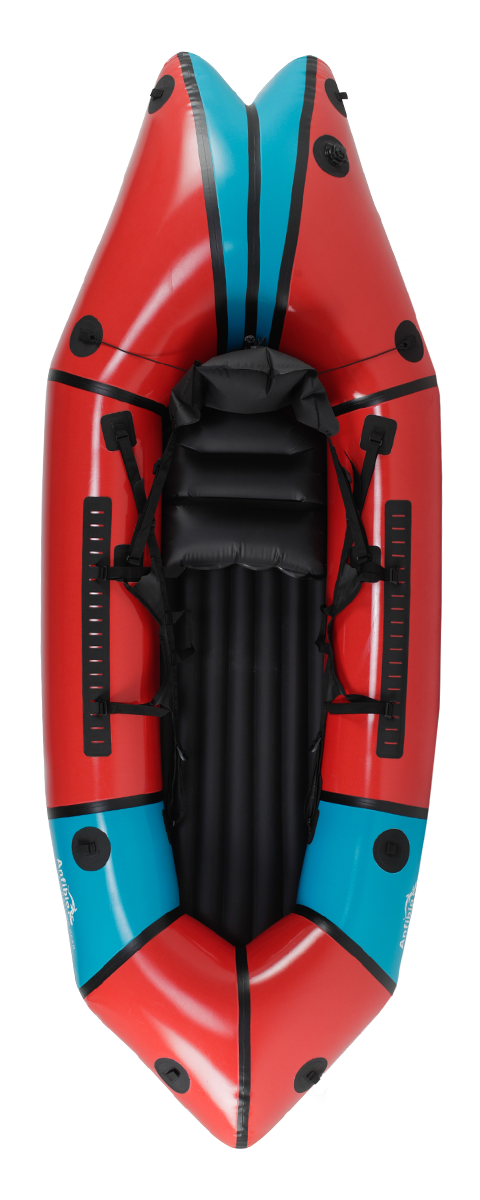

Specially shaped floor

The best lies beneath the surface. The taut floor forms a stiff lower hull with excellent handling characteristics. The raft is very fast and maintains speed in turbulent water, e.g. when eddying.

Specially shaped floor

The best lies beneath the surface. The taut floor forms a stiff lower hull with excellent handling characteristics. The raft is very fast and maintains speed in turbulent water, e.g. when eddying.

Striking composition

The combination of the VenturiTube self-bailing system, the profiled floor and the new TwinTail^TM (registered design) creates a unique appearance. Thanks to the bailing hose, the boat does not need a spraydeck and can be configured as a lightweight single-packraft.

Striking composition

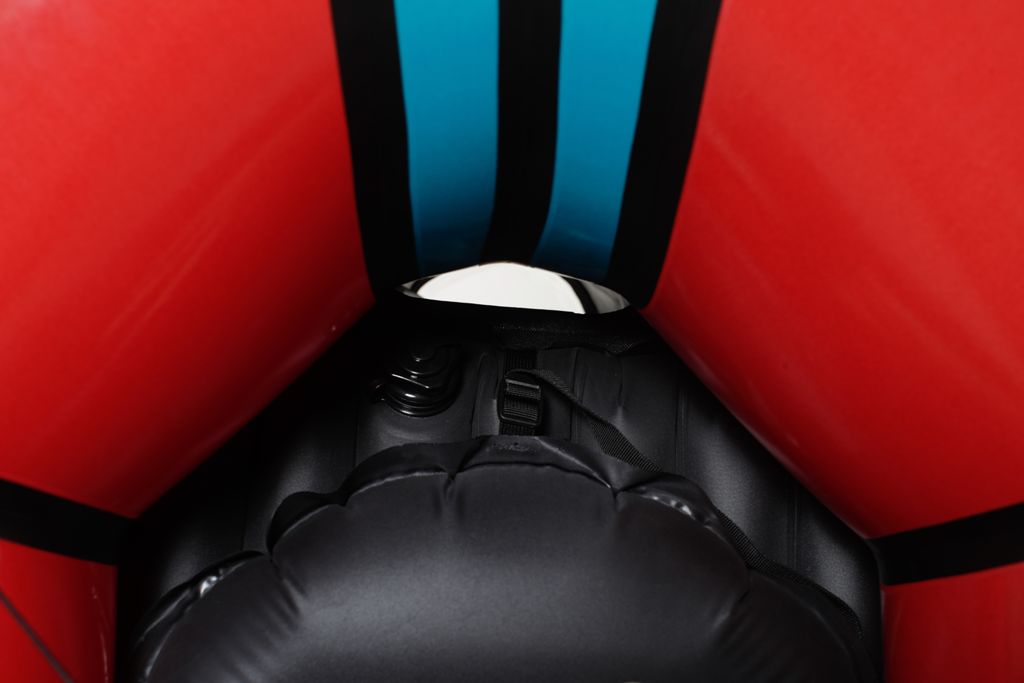

Free flow

Big waves simply drain away via the roll-top closable VenturiTube (bailing hose). Only a couple of litres remain in the boat, mostly displaced by the floor pad, even in big water because the inflatable floor and high bow provide huge buoyancy. This makes the Revo XL easier to paddle!

Free flow

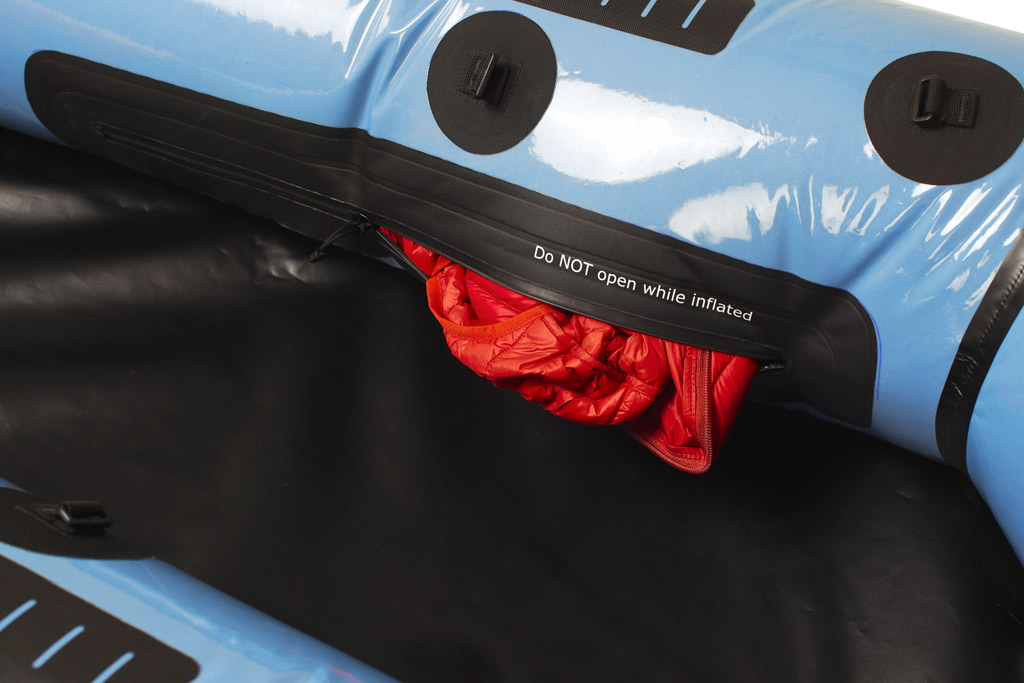

Capacity

Our TubeBags allow the storage of baggage inside the tubes. Two waterproof zippers with airtight inner pockets of 70 l capacity each enable overnight tours with huge loads.

Capacity

Our TubeBags allow the storage of baggage inside the tubes. Two waterproof zippers with airtight inner pockets of 70 l capacity each enable overnight tours with huge loads.

TwinTail^TM

The specially developed TwinTail^TM, the characteristic double stern, makes the Revo distinctive. The V-shaped notch at the stern of the boat is inspired by the design of modern surfboards. This provides stability and balance.

TwinTail^TM

Plus(+) fabric

The Revo XL is available in the Plus(+) material version. The high-density, extra-strong 420/840 denier nylon is the strongest material currently available for its weight. To be recognised by the colours Terra Red+ and Pacific Blue+, but also available in the familiar Fresh Green+.

Plus(+) fabric

Specifications

Dimensions

Inner

Length

135 cm

Width

36 cm

Outer

Length

247 cm

Width

92 cm

Waterline

220 cm

Tube diameter

28 cm

Weight

Boat

Boat with TubeBags

2.980 g

Boat without TubeBags

2.525 g

Seat (removable)

130 g

Backrest

160 g

Thigh straps

145 g

Inflatable floor

760 g

Accessories

Pack strap

25 g

Inflation bag

100 g

Repair material

20 g

More information

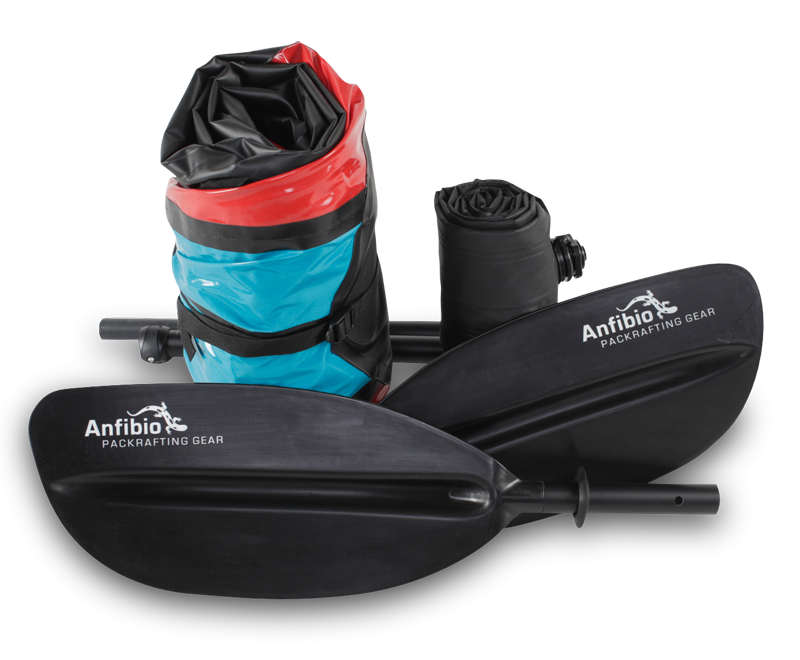

Pack size

Boat with TubeBags

30×25 cm

Boat without TubeBags

30×20 cm

Capacity

170 kg

Speed

5 km/h

Available colors

Big and powerful
Secure platform

The Revo XL+ is the big brother you can rely on. Fast and strong. Forgiving and helpful. Conceptually, it’s a very flexible guy. The self-bailer drains fast in whitewater and when rolled up will glide over flatwater. A spraydeck is not needed as water drains out through the floor hose, but the drain hose can be sealed. The Revo XL offers plenty of space, massive buoyancy and a huge capacity.

The secret lies chiefly in the floor mat. Not only does it provide added buoyancy and raised position in the water, it also creates a rigid hull with edges and lines. Combined with the generous length and stabilising TwinTail^TM, the Revo XL can be brought up to speed and maintained with two to three strokes. In addition, the mat is constructed in such a way that it almost completely displaces residual water. For a self-bailer, this makes the Revo XL more agile and easy to manoeuvre. Or as Jason Taylor, Guide at Tirio.co.uk puts it:

The hard floor really changes the shape and looks to add harder chines and rails. The raft is very fast and maintains speed in turbulent water more than any other raft I’ve paddled. And it runs straight! Which for a packraft is really something! I think it is a fantastic step forward in packraft design.

The Revo XL+ finds its application in long (and short) adventures with different missions, from wild to mild. Typical packrafting! Luggage can be easily and generously stowed away thanks to the TubeBags. The comfortable and adjustable seating system supports various uses and long trips such as river hikes, expeditions and long-distance travel.
